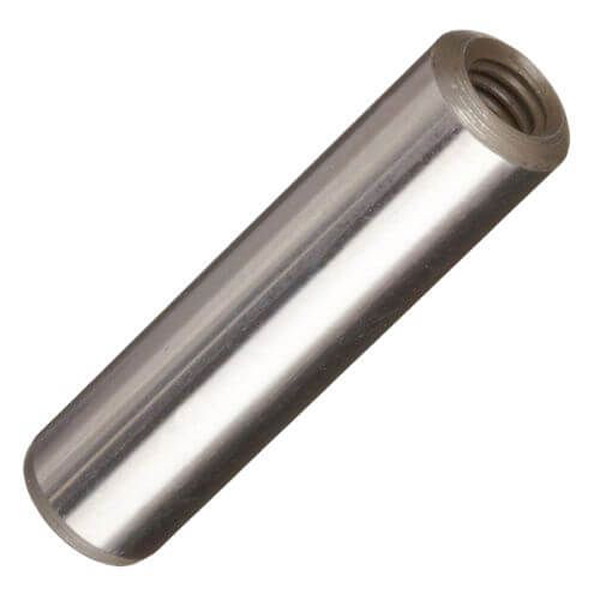

Dowel Pin - Extractable

Dowel Pin - Extractable

A variation of the standard dowel pin that features an internal thread on one end. This allows a standard puller or bolt to be inserted for easy,non-destructive extraction from a blind or through hole,making maintenance and servicing significantly easier without compromising alignment precision.

Key Features

• Internal thread for easy extraction
• Precision-ground for accurate alignment
• Ideal for blind hole applications
• Facilitates maintenance and disassembly

Typical Applications

• Jigs and fixtures requiring frequent servicing
• Blind hole applications in machine bases
• Mold and die assembly
• Precision alignment of critical components

Specifications

• Finish: Self colour
• Type: Extractable locating pin
• Function: Component alignment with simplified removal
