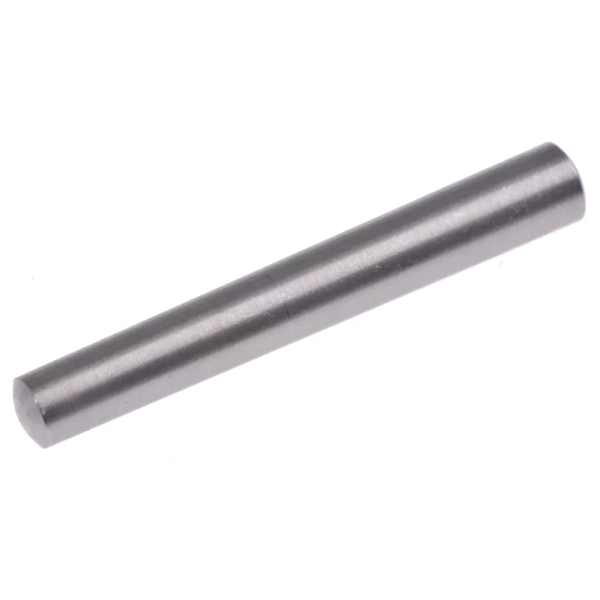

Imperial Taper Pins

Imperial taper pins are precision-made steel pins with a gradual taper, meaning one end is slightly larger than the other. The taper helps the pin wedge securely into a matching hole, giving a reliable, vibration-resistant way to locate and lock components in place. Commonly used in mechanical engineering, they’re often fitted in assemblies such as gearboxes and camshafts where accurate alignment and a tight mechanical hold are essential. They’re typically driven into position using a hammer and drift, then removed by driving out from the small end.

Key Features

• Smooth,precise taper
• Friction-based,high-strength connection
• Provides superior shear strength
• Guarantees accurate component alignment

Typical Applications

• Securing wheels,pulleys,or gears to shafts
• Critical alignment in precision machinery
• Heavy-duty load-bearing assemblies
• Permanent or semi-permanent connections

Specifications

• Finish: Self colour
• Type: Tapered alignment pin
• Function: Precise alignment and high shear strength
